Use for different dental handpiece electric grinding machine
dentist use dental led brushless micro motor

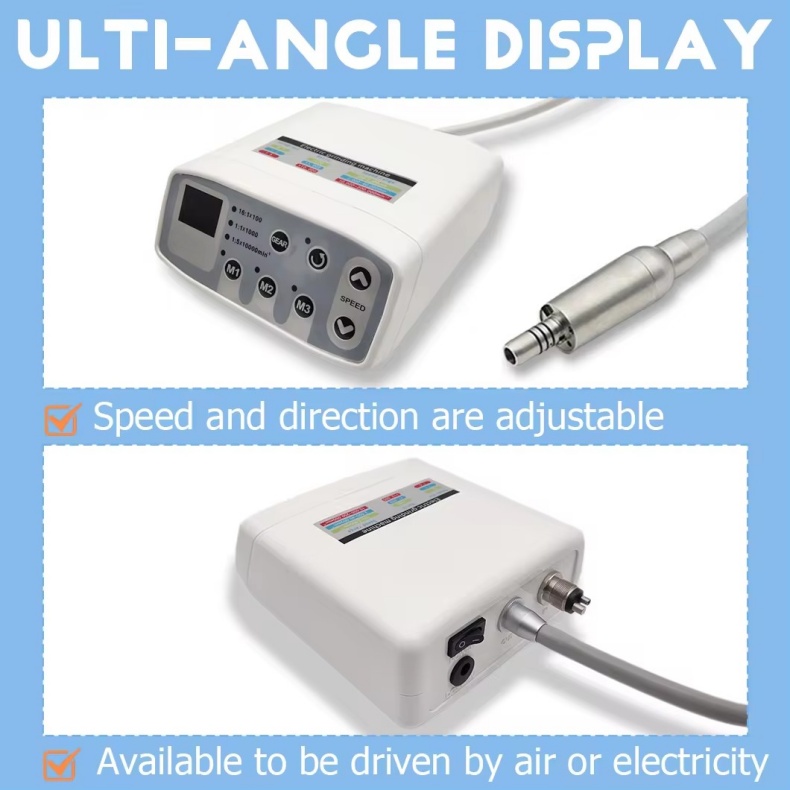

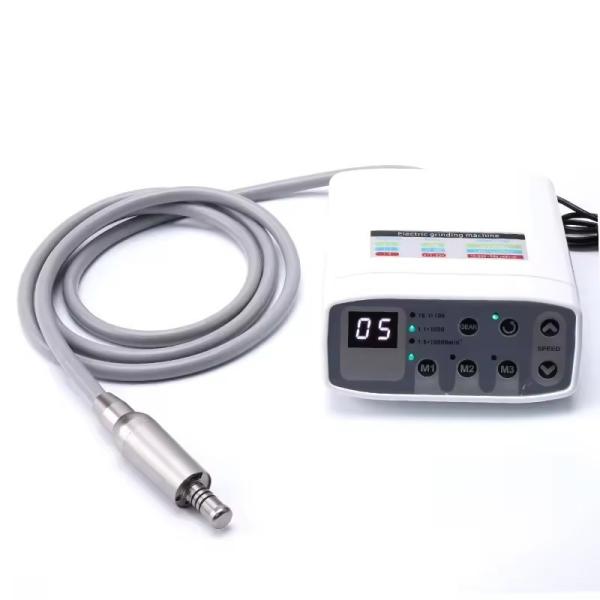

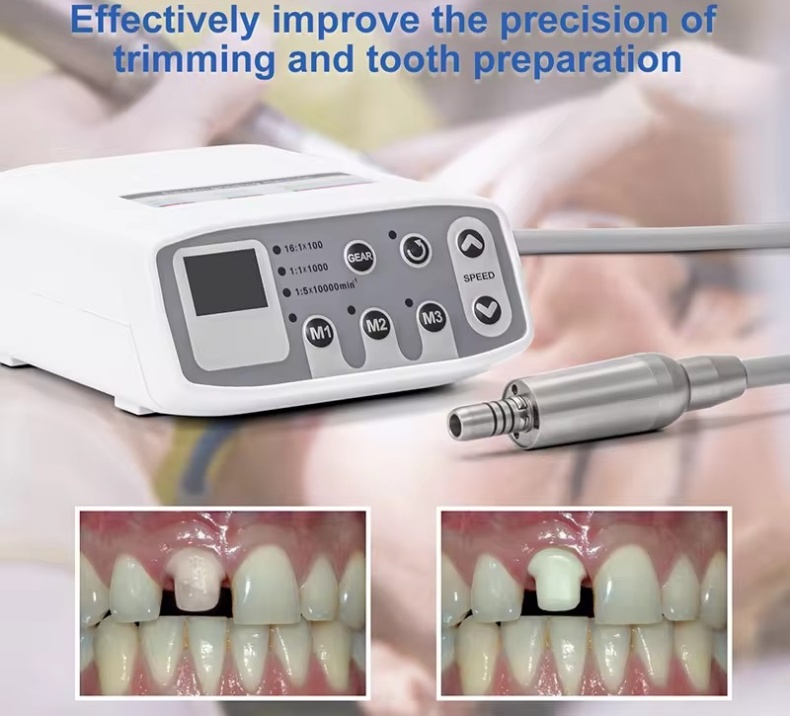

The dental LED brushless micromotor is an advanced dental tool used
for various procedures, including endodontics, restorative
dentistry, and prosthodontics. Dental LED brushless micromotor is
an essential tool in modern dentistry, providing enhanced
precision, efficiency, and patient comfort. Its advanced features
and versatility make it a valuable asset for various dental
procedures.
Features of dental led brushless micro motor
1. Adjust Speed: Electric dental led brushless micro motor working
speed can be easily adjusted in 2000 to 40000RPM, the working
voltage is 30~36V, and the water pressure: 0.25-0.4mpa.
2. Easy Install: Brushless motor polishing machine can be used for
different high and low speed handpiece work, easy to install and
remove, which bring you much convenient.
3. Heat Resistance: Electric dental Grinding machine can be cleaned
at 135°C high temperature, effectively avoiding dirts, which is
safe and healthy for you to use.
4. Widely Use: Electric Grinding machine suitable for high speed
Contra Angle Handpiece, optical fiber straightening machine, 45
degree low speed Contra Angle Handpiece, optical fiber Contra Angle
Handpiece.
5. Excellent Plastic: dental led brushless micro motor made of
plastic material, firm and sturdy, which can be used for a long
time and will not broken easily.
Name | Dental LED Brushless Micro Motor |
Material | ABS |
Rotation | 2,000-40,000rpm |
Torque | 3.4Ncm |
Power input | AC 100-240V |
Noise level | <60dB |
Water Pressure | 0.25-0.4mpa |
Illuminate | LED(white light) |
Connector | E type |
Package | 22.5*22*12 |
Note:
Use the configured adapter when working. Do not use other adapters.
Do not use this product in the electromagnetic environment with
strong magnetism field or electric field.
How to usethe led brushless micro motor:
1. When an appropriate working head is connected to the electric
motor on the handle, align the pin of the head with the slot of the
host until you hear a click. When disassembling, pull out should be
parallel to the straight direction.
2. Press the power switch to turn on the instrument. At the same
time, use the chair pedal or press M1 to M3. 3. After use, press
the switch button or release the connecting chair. The motor
stopped working and the light turn out.
Functions of Dental LED Brushless Micromotor
Endodontic Procedures:
Ideal for root canal treatments, offering precise control for
cleaning and shaping root canals.
Restorative Dentistry:
Used for cavity preparation, crown and bridge work, and other
restorative procedures.
Prosthodontics:
Assists in the preparation of tooth surfaces for prosthetic
restorations, including implants and dentures.
Benefits of Dental LED Brushless Micromotor
Enhanced Precision:
The ability to control speed and torque allows for precise
manipulation during dental procedures, improving outcomes.
Reduced Noise and Vibration:
Brushless motors operate more quietly and smoothly, enhancing
patient comfort during treatments.
Increased Efficiency:
High torque and adjustable speeds enable faster and more effective
procedures, improving workflow in dental practices.
Improved Visibility:
The integrated LED light enhances visibility in the oral cavity,
aiding in accurate diagnosis and treatment.
Durability and Reliability:
Brushless technology results in less wear and tear, leading to a
longer lifespan and reduced maintenance costs.
